Promecam 3150 Bending Matrix 95 x 95 mm Dubai
The 4-Way Multi-V Bending Matrix with a Cross-Section of 95 x 95 mm and a Total Length of 3150 mm by TFI
The 4-Way Multi-V Bending Matrix with a cross-section of 95 x 95 mm and a total length of 3150 mm by TFI is one of the most robust and versatile tooling options designed for Promecam press brakes and other European Style (Amada-Promecam) compatible systems. Featuring multiple V-openings on a single block, this matrix allows operators to process various sheet metal thicknesses without the need for frequent tool changes.
Below is an overview of its technical specifications, key advantages, and operational maintenance.
1. Technical Specifications
- Cross-Section Dimensions: A square profile of 95 × 95 mm, providing exceptional stability and resistance against high-tonnage bending forces.
- Tool Length: 3150 mm (available as a single solid piece or sectioned), perfectly matching the bed length of standard 3-meter press brakes, such as the Promecam 3150 models.
- Clamping/Style: Euro Style / Promecam compatible, seating directly onto the die holder or the machine bed.
- Material & Hardening: Manufactured by TFI using high-grade alloy steels (typically C45 or 42CrMo). The V-grooves undergo induction hardening to a depth-rated hardness of 52–60 HRC to eliminate wear.
2. V-Openings and Versatility

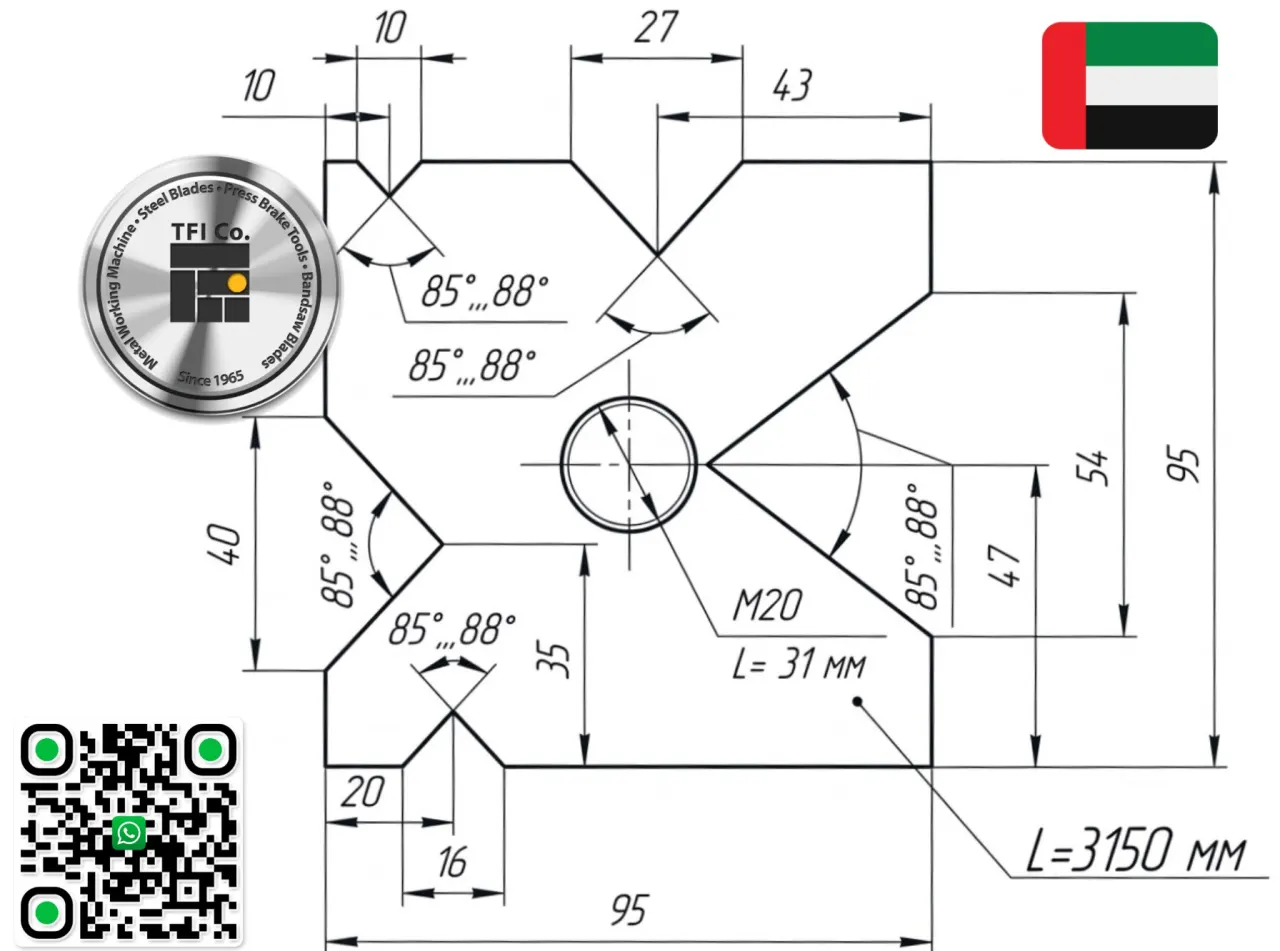

Due to its substantial 95×95 mm profile, TFI designs this square matrix to house a highly versatile range of V-openings across its four sides:
- Small to Medium Openings (e.g., V16, V25, V40): Ideal for bending thin to medium gauge sheets ranging from 1.5 mm to 4.0 mm.
- Large Openings (e.g., V63 or V80): Positioned on the broader sides, these large channels allow the bending of heavy plates (5 mm to 8 mm and above) at standard 85° or 88° angles.
3. Key Advantages for Promecam Press Brakes
- Reduced Setup Times: Instead of swapping out the entire die to change sheet thickness, the operator simply rotates the matrix 90 or 180 degrees to the required V-opening.
- High Tonnage Resistance: The heavy-duty 95×95 mm body ensures the tool resists deformation, cracking, or deflection under severe bending pressures.
- Production Flexibility: It enables a single workstation to process a wide spectrum of materials—including mild steel, stainless steel, and aluminum—of varying thicknesses.
- Extended Tool Life: TFI’s use of premium steel combined with precise induction hardening ensures the matrix delivers reliable accuracy over years of high-volume production.
TFI Co. supplies the Promecam 3150 bending matrix in Dubai as a 4-way multi-V tool with a 95 x 95 mm cross-section and 3150 mm total length, built for Promecam press brakes and other European Style (Amada-Promecam) compatible systems. The page gives industrial buyers, fabrication shops, and procurement teams the technical specifications and compatibility details needed to evaluate this multi-V block for processing different sheet metal thicknesses without frequent tool changes. As part of the wider web.tfico.com gateway, the listing routes directly into TFI Co.’s inquiry and contact process alongside core categories that include shear blades, press brake tools, circular blades, food industry knives, and carton slitter knives, with related links for re-sharpening and metalworking equipment. This structure lets readers move from product discovery to an export-oriented contact request for the Promecam matrix and other TFI Co. cutting and bending solutions.
Quick Summary
- Promecam 3150 Bending Matrix features a 95 x 95 mm cross-section and 3150 mm total length.
- V-openings on a single block reduce tool changes for various sheet metal thicknesses.
- Industrial buyers and fabrication factories gain versatile Promecam-compatible tooling for sheet metal processing.
- Procurement professionals use Promecam 3150 Bending Matrix when processing multiple thicknesses without frequent tool changes.
- Contact TFI Co. for detailed specifications and export enquiries on Promecam 3150 Bending Matrix tooling.
Verified Quality
TFI Co. does not publish blanket ISO/DIN/CE listings for this Promecam 3150 bending matrix; specification and compliance confirmation is available on request through the web.tfico.com enquiry channel.
Used by industrial buyers, fabrication factories, packaging manufacturers, maintenance teams, and procurement professionals. Positioned under Steel Blades • Machine Knives • Press Brake Tools • Cutting Saws • Re Sharpening, the site supports Promecam-compatible tooling selection and export-oriented enquiries.
Warranty: TFI Co. provides replacement, regrind, and support terms on a per-order basis; contact web.tfico.com to confirm the warranty and service options for this Promecam 3150 bending matrix.
Engineering Data
| Product type | 4-Way Multi-V bending matrix |
|---|---|
| Manufacturer | TFI Co. |
| Cross-section | 95 mm x 95 mm |
| Total length | 3150 mm |
| Number of V-openings | 4 |
| Die configuration | Multi-V openings on a single block |
| Primary function | Process multiple sheet metal thicknesses without frequent tool changes |
| Application | Sheet metal bending on press brakes |
| Compatible press brake systems | Promecam press brakes and other European Style (Amada-Promecam) compatible systems |
| Tooling style | European Style (Amada-Promecam) compatible |
| Market availability | Dubai, GCC, and global export markets |
Sectors We Serve
- Press brake tooling use case: Sheet metal fabrication shops running Promecam press brakes use the TFI Co 4-way multi-V 95 x 95 mm bending matrix to process multiple material thicknesses without frequent tool changes.
- Fabrication factory audience: Fabrication factories in Dubai and the wider GCC can specify the 3150 mm Amada-Promecam compatible matrix for European style press brake systems from TFI Co.
- Procurement audience: Procurement professionals sourcing Amada-Promecam compatible tooling can route enquiries for the 95 x 95 mm multi-V matrix directly to TFI Co.
- Maintenance team audience: Maintenance teams standardizing press brake tooling can reduce changeover time by using the block’s multiple V-openings across different sheet metal thicknesses.
- Metalworking context: High-volume sheet metal bending lines benefit from the 3150 mm total length when processing long workpieces through repeated thickness changes.
- Export-oriented context: Export-oriented metalworking operations in global industrial markets, including GCC sites, can request the Promecam 3150 bending matrix from TFI Co for Dubai delivery.
- Related cutting solutions context: Shops combining press brake forming with shearing and cutting can use TFI Co as a single industrial gateway for bending matrices and related steel blades.
- Re-sharpening services context: After production wear, maintenance teams can route re-sharpening service requests for related machine knives and steel blades through TFI Co while sourcing the Promecam matrix.
Buyer Q&A
What is the Promecam 3150 Bending Matrix 95 x 95 mm?
It is a 4-way multi-V bending matrix produced by TFI Co. with a cross-section of 95 x 95 mm and a total length of 3150 mm. It is built for Promecam press brakes and European Style Amada-Promecam compatible machines, providing multiple V-openings on one block for versatile sheet metal bending without frequent tool changes.
How does the multi-V design improve bending productivity?
The multi-V design places several V-openings on a single block, so operators can switch between different sheet metal thicknesses without removing or changing tools. This reduces setup time, maintains consistent alignment, and improves press brake uptime for fabrication and industrial production environments. TFI Co. suppies this configuration for Promecam and compatible systems.
Can this matrix be used with Amada-Promecam style press brakes?
Yes, the matrix is designed for Promecam and other European Style Amada-Promecam compatible press brakes. However, machine-specific clamping or holder variations may affect fit, so TFI Co. should verify your press brake model before finalizing the 95 x 95 mm, 3150 mm tool.
Does the 95 x 95 mm cross-section influence tool strength?
The 95 x 95 mm cross-section provides a robust, rigid body for repeatable bending under press brake load. This heavy-duty profile supports reliable performance across multiple V-openings, but proper machine compatibility and tonnage limits must be confirmed with TFI Co. to avoid overloading the tool or press brake.
Which sheet metal applications benefit most from this bending matrix?
This matrix suits fabrication shops, packaging manufacturers, and other sheet metal operations that run varied thicknesses on Promecam or compatible press brakes. The 3150 mm length and multi-V design support a range of bending jobs while reducing tool-change frequency. For specific V-opening and thickness recommendations, contact TFI Co.
How can I get availability or a quote for the Promecam 3150 Bending Matrix in Dubai?
For current availability or a quote on the Promecam 3150 Bending Matrix 95 x 95 mm in Dubai, contact TFI Co. dierctly. Use the online chat for the fastest response, submit the online enquiry form, or call the sales team. Include the 3150 mm length, 95 x 95 mm cross-section, and your press brake model to speed up the inquiry.
Performance and honesty notice
- TFI Co. honestly presents the Promecam 3150 bending matrix as a 4-way multi-V tool with a 95 x 95 mm cross-section and 3150 mm length, built for Promecam press brakes and European Style Amada-Promecam compatible systems.
- This page routes industrial blade and tooling enquiries and generates contact requests for TFI Co. press brake tools, steel blades, machine knives, cutting saws, and re-sharpening services.
- Bending performance, tool fit, and service life can vary with press brake configuration, material type and thickness, and operating conditions; confirm application-specific requirements with TFI Co.
