EU4416 Gooseneck Press Brake Punch UAE
In the modern sheet metal and structural steel fabrication industry, achieving precise, repetitive bends extends far beyond the capabilities of the press brake machine alone. It relies heavily on the engineering of the tooling and its clamping interfaces. Complex forming processes, such as deep box bending or creating tight U-channels, require specific tool geometries that can complete the bend without colliding with the workpiece edges. This article examines the technical specifications of the EU4416 punch and the standard Promecam / Amada clamping system.
1. The Promecam / Amada Clamping Design (European Style)
The Amada / Promecam clamping interface, globally recognized as the Euro Style, is the default industry standard for upper tool holders on press brakes.
- Standard Tang: Punches in this system feature a fixed 13 mm wide tang equipped with a built-in safety groove.
- Operational Advantage: Thanks to intermediate components, this system allows operators to quickly change, adjust, and lock different tool segments either horizontally or vertically.
- Load Distribution: The engineered clamp structure distributes the tonnage line uniformly, preventing tool angular deflection under high-tonnage cycles.
2. Characteristics and Technical Specifications of the EU4416 Punch
The EU4416 is a specialized European-style upper punch manufactured by reputable brands like TFI. This model offers unique specifications for manufacturing facilities:

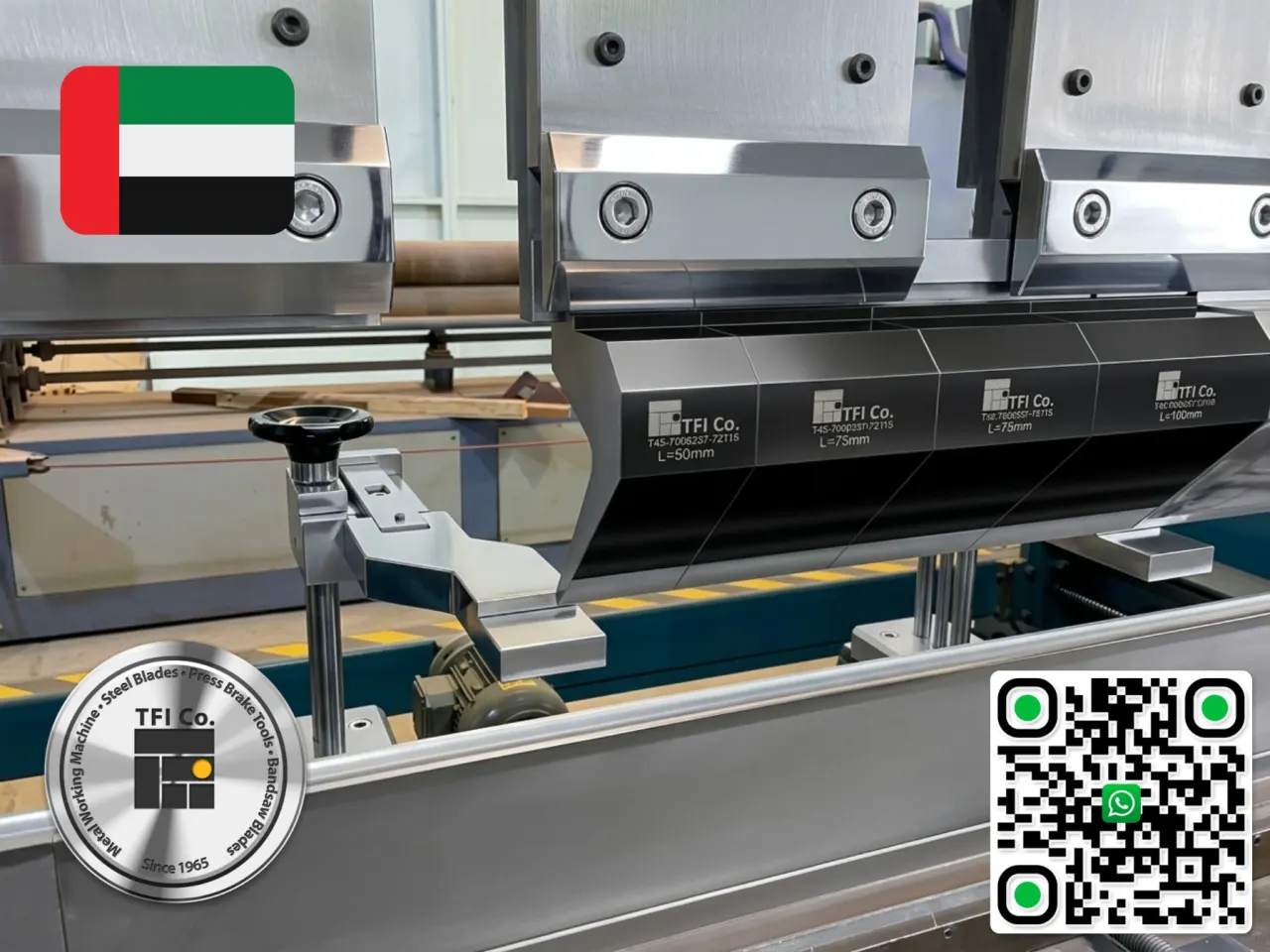

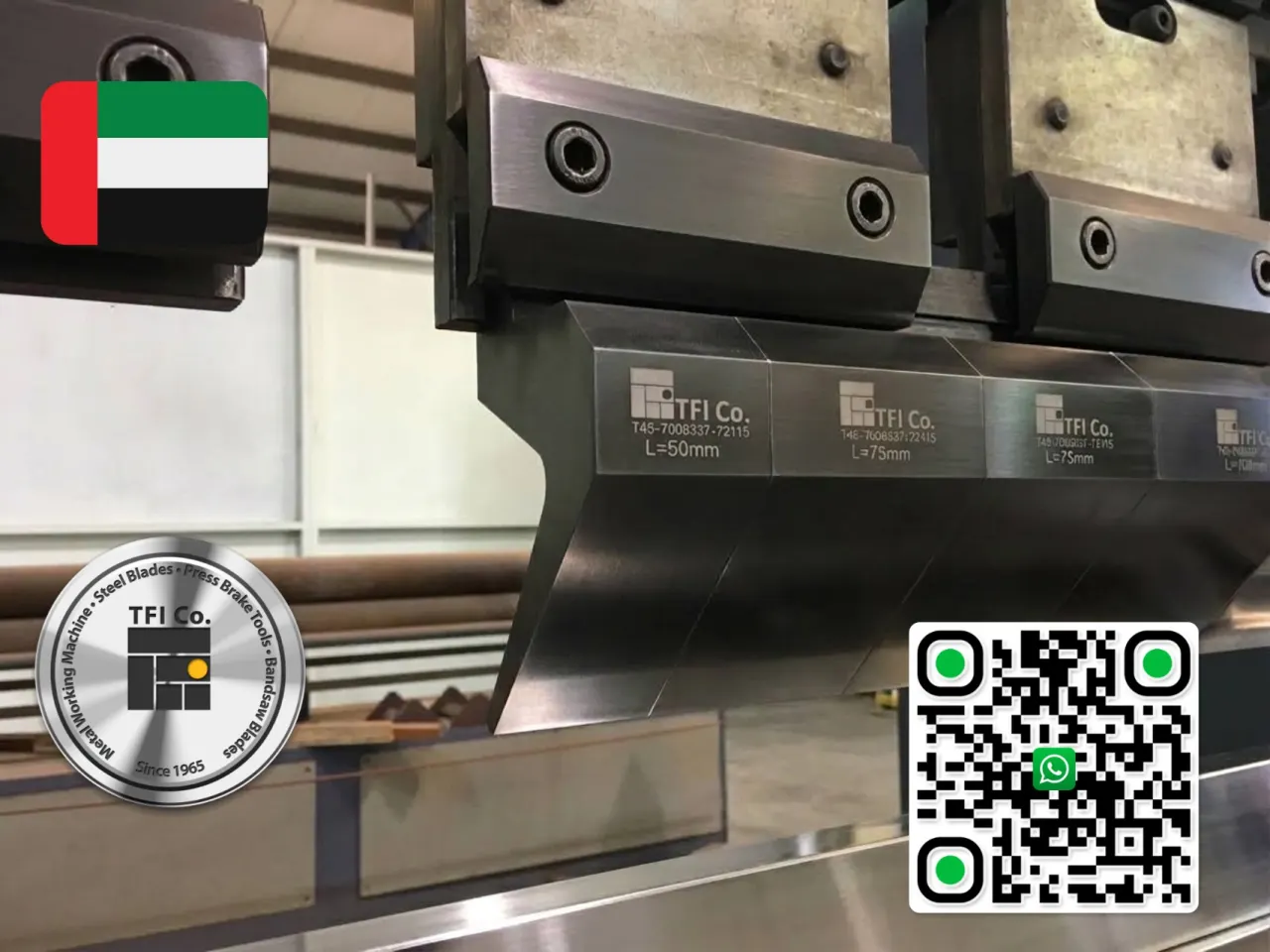

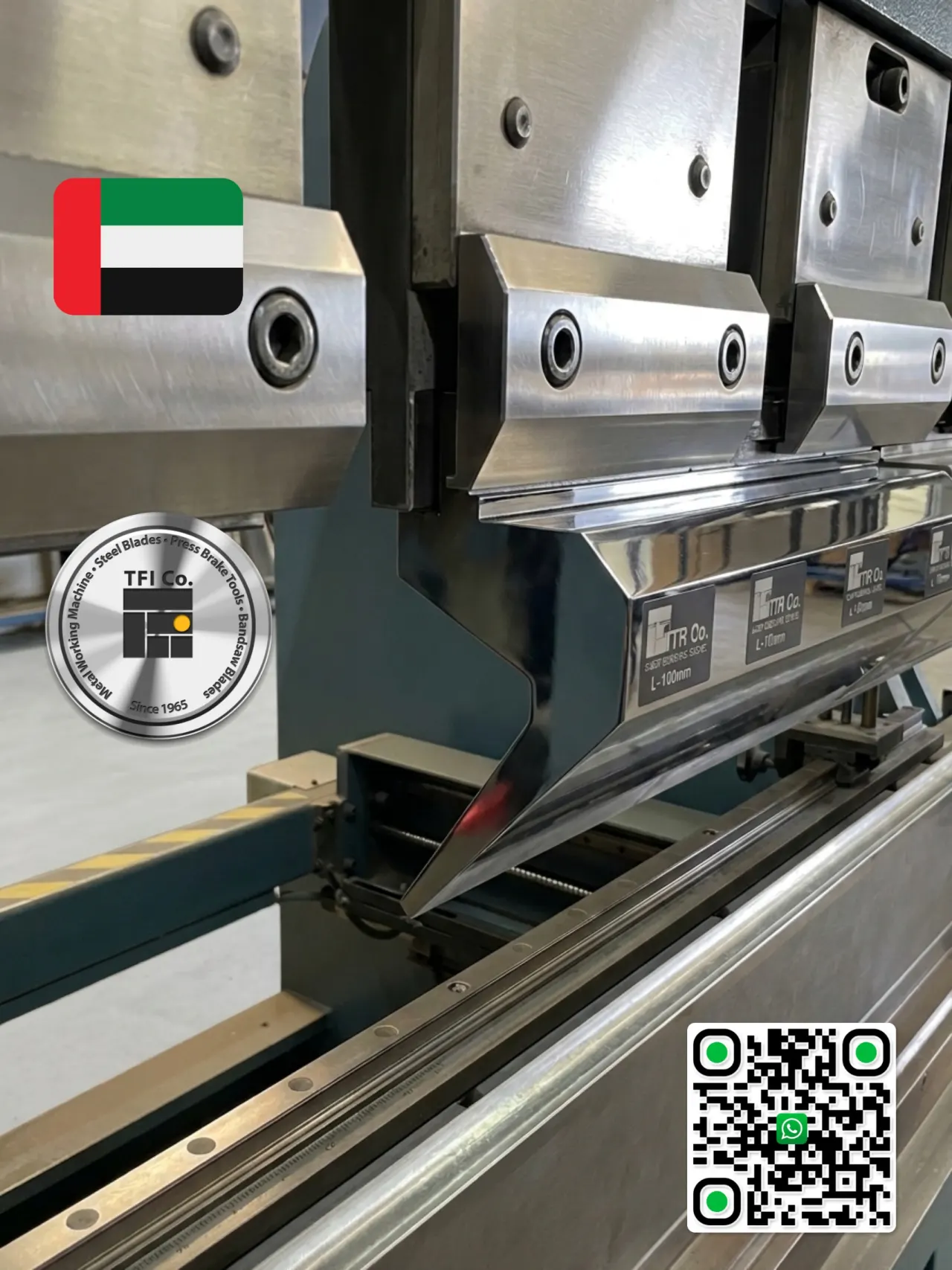

- Gooseneck Geometry: The EU4416 features a deep, curved relief profile in its body. This relief space prevents the sheet metal from colliding with the punch body during the bending stroke and flange return.
- Primary Application: This tool is engineered specifically for producing deep U-channels and sequential box bending operations.
- Segmented Tooling Design: These punches are typically supplied in standardized segmented lengths. This allows the operator to easily configure the punch layout on the clamp to match the exact bending length of the workpiece.
3. Technical Constraints and Engineering Principles of Gooseneck Tools
A critical engineering principle for designers to note is that gooseneck punches like the EU4416 carry structural tonnage capacity limitations due to their curved body profile. Because the centerline of the tool and the line of force application do not align directly beneath the punch tip, these tools are more sensitive to excessive pressure compared to straight punches. Therefore, they must be operated strictly within the catalog guidelines and loading limits.
If you’re looking to optimize sheet‑metal bending in UAE, the EU4416 Gooseneck Press Brake Punch page on web.tfico.com gives you the precise technical specifications and clamping design needed to avoid workpiece collisions while achieving deep‑box bends. By reviewing this resource, you’ll be able to select the correct punch geometry, understand Promecam/Amada clamping compatibility, and streamline your tooling decisions—ultimately reducing setup time and re‑work. Our catalog also highlights TFI Co’s re‑sharpening services, ensuring your blades maintain peak performance. By contacting us through the page, you can receive a tailored quote and technical support tailored to your specific fabrication workflow. This page exemplifies how TFI Co’s industrial gateway presents core categories—shear blades, press brake tools, circular blades, food‑industry knives, and carton slitter
Essential Points
- EU4416 punch delivers precise, repetitive bends for sheet metal fabrication.
- TFI Co. routes enquiries for high‑performance press brake tools, boosting fabrication efficiency.
- Industrial buyers and procurement teams gain access to TFI Co.’s EU4416 punch, ensuring consistent bend quality.
- Employ EU4416 punch during deep box bending or tight U‑channel formation for collison‑free results.
- Promecam / Amada clamping ensures tool geometry aligns with sheet edges, preventing collisions.
Verified Quality
TFI Co. offers customized confirmation on request for certifications, standards, and technical compliance specific to the EU4416 gooseneck press brake punch UAE.
Trusted by industrial buyers, fabrication factories, packaging manufacturers, maintenance teams, and procurement professionals, TFI Co. positions its gateway around Steel Blades • Machine Knives • Press Brake Tools • Cutting Saws • Re Sharpening, supporting product discovery and export-oriented enquiries for press brake tools and related cutting solutions.
Warranty: For the EU4416 gooseneck press brake punch and related press brake tooling, TFI Co. confirms warranty, replacement, and re-sharpening support terms directly on enquiry.
Engineering Data
| Tool Type | Gooseneck Press Brake Punch |
|---|---|
| Category | Press Brake Tool |
| Model | EU4416 |
| Manufacturer | TFI Co. |
| Material | Steel |
| Compatible Clamping System | Promecam / Amada |
| Compatible Machine | Press Brake Machines |
| Application | Sheet Metal and Structural Steel Fabrication |
| Manufacturer Contact | TFI Co. |
Proven Applications
- Press Brake Tooling Application: Fabricators performing deep box bending or tight U-channel forming on the EU4416 gooseneck punch to prevent tooling collision with workpiece edges during complex sheet metal operations.
- Fabrication Factory Maintenance: Maintenance teams in UAE-based fabrication plants sourcing standard Promecam and Amada clamping interfaces to ensure seamless integration of the EU4416 punch into existing press brake setups.
- GCC Export Logistics: Procurement professionals managing global industrial supply chains ordering precision press brake tools from TFI Co. to support export-oriented manufacturing projects across the GCC region.
- Structural Steel Precision: Industrial buyers requiring repetitive, high-precision bends in structural steel fabrication selecting the EU4416 geometry to maintain consistency beyond the capabilities of the machine alone.
- Tooling Compatibility Verification: Engineering teams verifying clamping system compatibility between new EU4416 gooseneck punches and legacy Promecam or Amada press brake backgauges to minimize downtime during tool changes.
- UAE Industrial Sourcing: Local UAE manufacturers accessing TFI Co.’s export-focused catalog to source specialized press brake tools that meet specific engineering specifications for local fabrication demands.
Common Questions
What is the EU4416 gooseneck press brake punch?
The EU4416 is a specialized press brake punch designed for complex forming processes like deep box bending and tight U-channels. It features a gooseneck geometry that allows the tool to complete bends without colliding with the workpiece edges, ensuring precise and repetitive results in modern sheet metal and structural steel fabrication.
How does the gooseneck design prevent collision during bending?
The gooseneck geometry extends the punch profile laterally, allowing the tool to pass over the workpiece edges while maintaining contact with the material. This design is essential for complex forming tasks, such as creating tight U-channels or deep boxes, where a standard straight punch would physically interfere with the part during the bending operation.
Can this punch handle deep box bending applications?
Yes, the EU4416 is engineered specifically for complex forming processes including deep box bending. Its profile is optimized to navgate the workpiece geometry without interference, enabling fabrication facilities to achieve precise, repetitive bends in structural steel and sheet metal without requiring secondary operations or manual adjustments.
Does the EU4416 punch use a standard clamping system?
The EU4416 punch utilizes the standard Promecam and Amada clamping system. This industry-standard interface ensures compatibility with a wide range of press brake machines, allowing for secure tooling installation and reliable performance in high-volume production environments. TFI Co. supplies these tools with precise engineering specifications.
Which industries benefit most from using gooseneck press brake punches?
Industries involved in modern sheet metal and structural steel fabrication benefit significantly from gooseneck punches. These tools are critical for manufacturers producing components requiring complex geometries, such as tight U-channels and deep boxes, where precision and the avoidance of workpiece collision are paramount for maintaining production efficiency and quality.
How do I order the EU4416 punch for my press brake in the UAE?
To order the EU4416 gooseneck punch for your UAE-based fabrication facility, contact TFI Co. directly. You can use the online chat for immediate assistance, submit the online inquiry form, or call our team. Provide your specific machine model and clamping system details to ensure the correct Promecam/Amada compatible tooling is dispatched to you.
