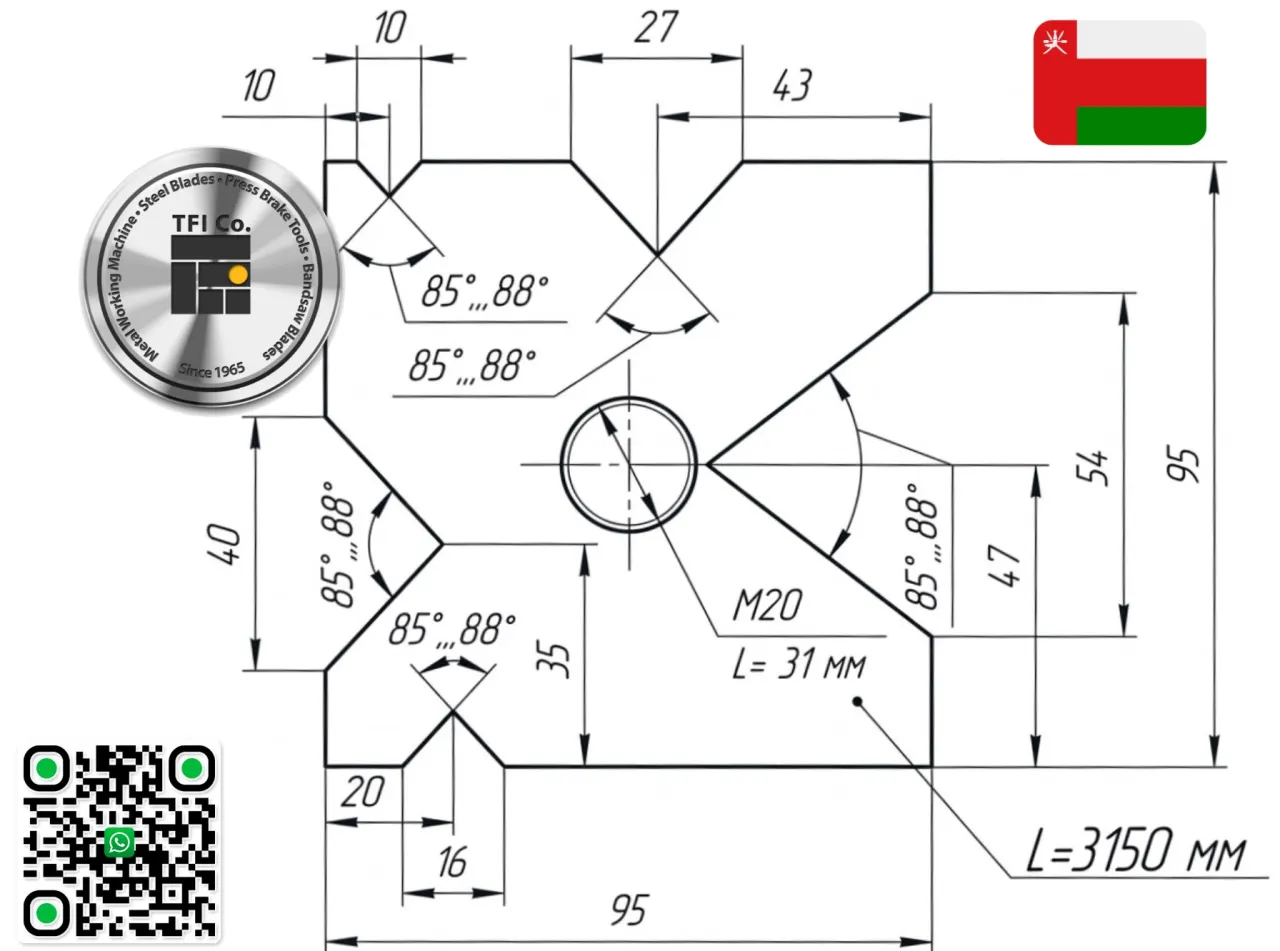

Bending Matrix 95 x 95 x 3150 mm for Promecam, Oman
The 4-Way Multi-V Bending Matrix with a cross-section of 95 × 95 mm and a total length of 3150 mm by TFI is one of the most robust and versatile tooling options designed for Promecam press brakes and other European-style (Amada-Promecam) compatible systems.
Featuring multiple V-openings on a single block, this matrix allows operators to process various sheet metal thicknesses without the need for frequent tool changes.
Below is an overview of its technical specifications, key advantages, and operational maintenance.
1. Technical Specifications
- Cross-Section Dimensions: A square profile of 95 × 95 mm, providing exceptional stability and resistance against high-tonnage bending forces.
- Tool Length: 3150 mm (available as a single solid piece or sectioned), perfectly matching the bed length of standard 3-meter press brakes, such as the Promecam 3150 models.
- Clamping/Style: Euro-style / Promecam-compatible, seating directly onto the die holder or the machine bed.
- Material & Hardening: Manufactured by TFI using high-grade alloy steels (typically C45 or 42CrMo). The V-grooves undergo induction hardening to a depth-rated hardness of 52–60 HRC to eliminate wear.
2. V-Openings and Versatility
Due to its substantial 95 × 95 mm profile, TFI designs this square matrix to house a highly versatile range of V-openings across its four sides:
- Small to Medium Openings (e.g., V16, V25, V40): Ideal for bending thin to medium gauge sheets ranging from 1.5 mm to 4.0 mm.
- Large Openings (e.g., V63 or V80): Positioned on the broader sides, these large channels allow the bending of heavy plates (5 mm to 8 mm and above) at standard 85° or 88° angles.
3. Key Advantages for Promecam Press Brakes
- Reduced Setup Times: Instead of swapping out the entire die to change sheet thickness, the operator simply rotates the matrix 90 or 180 degrees to the required V-opening.
- High Tonnage Resistance: The heavy-duty 95 × 95 mm body ensures the tool resists deformation, cracking, or deflection under severe bending pressures.
- Production Flexibility: It enables a single workstation to process a wide spectrum of materials—including mild steel, stainless steel, and aluminum—of varying thicknesses.
- Extended Tool Life: TFI’s use of premium steel combined with precise induction hardening ensures the matrix delivers reliable accuracy over years of high-volume production.
The 4-Way Multi-V Bending Matrix, featuring specific 95 x 95 x 3150 mm dimensions, is a robust and versatile press brake tooling option engineered for Promecam and similar European-style systems. As a core offering from TFI Co., this component demonstrates our dedication to providing essential industrial solutions for fabrication factories and procurement professionals. This page details critical technical specifications and operational insights, empowering readers to confidently select optimal press brake tools for their metalworking applications and initiate direct enquiries, reflecting TFI Co.’s comprehensive expertise across industrial blades and machine knives.
Core Advantages
- TFI Co. offers a 4-Way Multi-V Bending Matrix 3150 mm long.
- Process diverse sheet metal thicknesses without frequent tool changes.
- Industrial buyers optimize production with versatile TFI Co. press brake tools.
- Utilize this matrix for Promecam and European-style press brake systems.
- Enhance metal fabrication efficiency using robust industrial cutting solutions.
Quality & Certifications
TFI Co. does not list specific ISO or CE certification numbers on this page. Detailed compliance documentation and material test reports are available upon direct request for export-oriented enquiries.
Trusted by fabrication factories and industrial buyers across global markets for robust press brake tooling. The platform supports product discovery for categories including steel blades, machine knives, and cutting saws.
Warranty: TFI Co. provides direct support for product specifications and replacement needs through its export-oriented enquiry channels for professional procurement teams.
Dimensional Data
| Product Type | 4-Way Multi-V Bending Matrix |
|---|---|
| Cross-Section | 95 mm x 95 mm |
| Total Length | 3150 mm |
| Manufacturer | TFI Co. |
| Compatible Tooling Systems | Promecam press brakes and European-style (Amada-Promecam) compatible systems |
| Primary Application | Sheet metal bending with multiple V-openings for varying thicknesses |
| Operational Advantage | Processes various sheet metal thicknesses without frequent tool changes |
| Service Category | Press brake tools |
Proven Applications
- Multi-V Bending Operations: Fabrication facilities processing varying sheet metal thicknesses utilize the 4-way multi-V bending matrix to reduce tool changeover time on European-style press brakes.
- Promecam Maintenance Teams: Maintenance engineers managing Amada-Promecam compatible systems select this 95 x 95 x 3150 mm matrix to ensure consistent bending performance across diverse production runs.
- GCC Industrial Procurement: Procurement professionals in Oman and the wider GCC region source this specific bending matrix from TFI Co. to support export-oriented industrial manufacturing capabilities.
- Sheet Metal Fabrication Factories: Industrial buyers in fabrication factories deploy this robust tooling to handle high-volume metalworking tasks without compromising on the versatility of the cross-section design.
- Press Brake Tooling Compatibility: Operators working with European-style press brake systems rely on this matrix to maintain precision when switching between different V-opening requirements on a single block.
- Global Export-Side Manufacturing: Facilities in global industrial markets with strong export orientations adopt TFI Co. bending tools to emet international standards for metalworking efficiency.
- Industrial Blade & Tooling Consolidation: Corporate buyers consolidate their sourcing of press brake tools alongside other steel blades and machine knives through TFI Co. to streamline their industrial supply chain.
Common Questions
What is a 95 x 95 x 3150 mm bending matrix for Promecam?
It is a TFI Co. 4-way multi-V bending matrix with a 95 x 95 mm cross-section and 3150 mm total length, built for Promecam press brakes and compatible Amada-Promecam systems. Multiple V-openings on one block let operators process different sheet metal thicknesses without frequent tool changes.
How does the 4-way multi-V design improve press brake operations?
The multi-V block provides several V-openings in one tool, so operators can change material thickness by rotating or repositioning the matrix instead of swapping tools. This reduces setup time, improves flexibility, and supports more consistent bending on Promecam and Amada-Promecam compatible press brakes.
Can this bending matrix be used with press brakes other than Promecam?
Yes. TFI Co. designed it for Promecam press brakes and other European-style Amada-Promecam compatible systems. Because clamping and tool-interface dimensions vary by machine, confirm your press brake model and tooling compatibility with TFI Co. before ordering the 3150 mm matrix for your application.
Does the 95 x 95 mm cross-section affect load capacity or bending performance?
The 95 x 95 mm cross-section gives the matrix a robust, rigid profile for demanding press brake work. Its multiple V-openings also help cover a range of sheet metal thicknesses. For exact tonnage ratings and maximum load capacity on your Promecam model, consult TFI Co. with your machine specifications.
Which applications benefit from a 3150 mm 4-way bending matrix?
The 3150 mm length is suited to long sheet metal components in fabrication, metalworking, and manufacturing shops using Promecam or Amada-Promecam press brakes. It is especially useful where operators process multiple material thicknesses and need to reduce tool-change downtime between jobs.
How can I get a quote for the 95 x 95 x 3150 mm Promecam bending matrix in Oman?
For current availability and a quote on the TFI Co. 95 x 95 x 3150 mm 4-way multi-V bending matrix for Promecam in Oman, contact TFI Co. directly. Use the online chat for the fastest response, submit the contact form, or call with your machine model and application details.
Performance and honesty notice
- This page presents the 95 x 95 x 3150 mm 4-Way Multi-V Bending Matrix as a robust, versatile press brake tooling option engineered for Promecam and similar European-style systems.
- TFI Co. commits to routing enquiries and generating contact requests across industrial blade and tooling categories, including this matrix for fabrication, maintenance, and procurement teams.
- The matrix is positioned to reduce tool changeover time and support consistent bending on Amada-Promecam compatible systems; actual results may vary by sheet metal thickness, tool configuration, and application context.
