Bending Matrix 95x95mm for Promecam 3150, Saudi Arabia

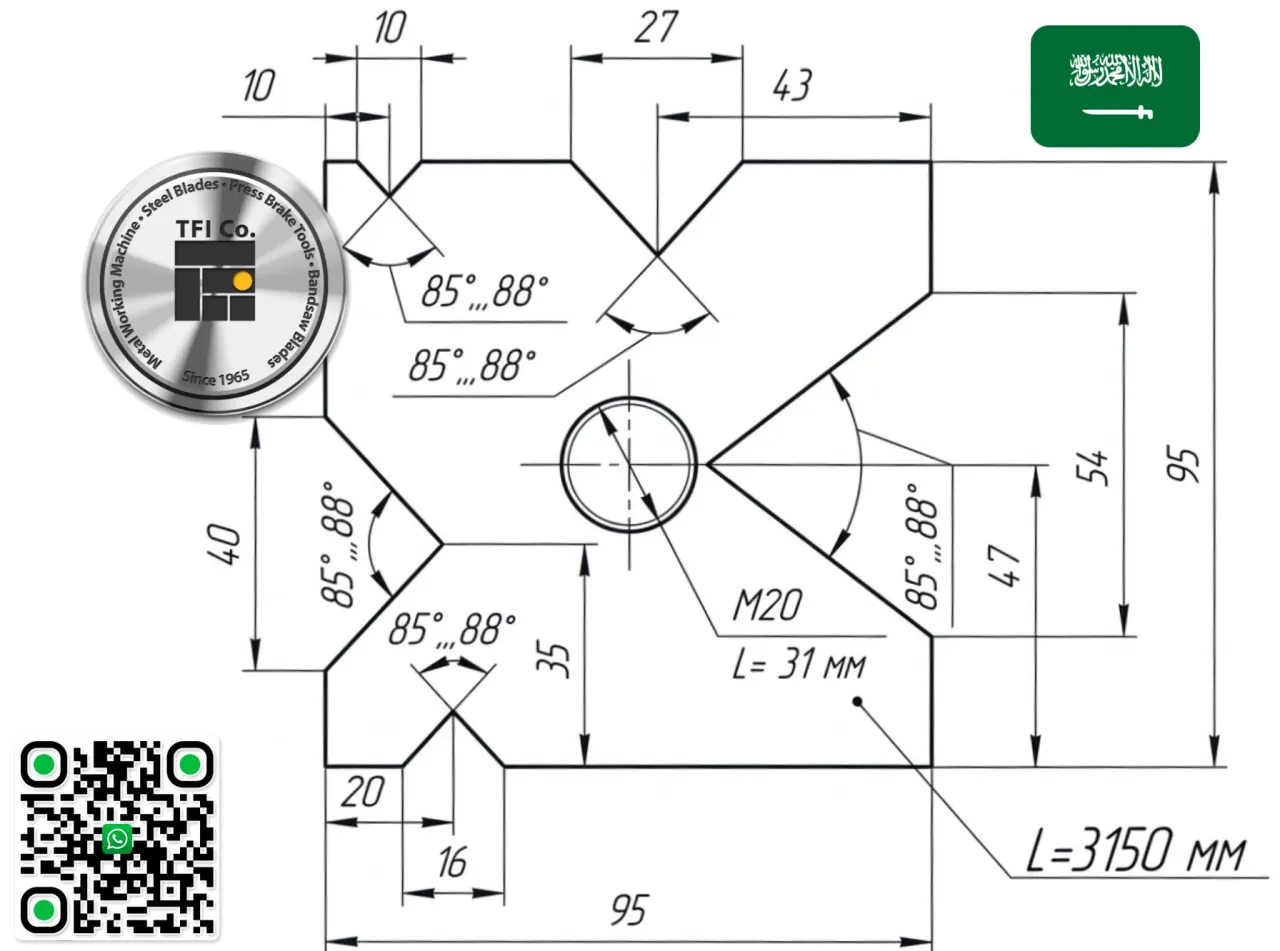

The 4-Way Multi-V Bending Matrix with a Cross-Section of 95 x 95 mm and a Total Length of 3150 mm by TFI
This matrix is one of the most robust and versatile tooling options designed for Promecam press brakes and other European-style (Amada-Promecam) compatible systems. Featuring multiple V-openings on a single block, it allows operators to process various sheet metal thicknesses without the need for frequent tool changes.
Below is an overview of its technical specifications, key advantages, and operational maintenance.
1. Technical Specifications
- Cross-Section Dimensions: A square profile of 95 × 95 mm, providing exceptional stability and resistance against high-tonnage bending forces.
- Tool Length: 3150 mm (available as a single solid piece or sectioned), perfectly matching the bed length of standard 3-meter press brakes, such as the Promecam 3150 models.
- Clamping/Style: Euro Style / Promecam compatible, seating directly onto the die holder or the machine bed.
- Material & Hardening: Manufactured by TFI using high-grade alloy steels (typically C45 or 42CrMo). The V-grooves undergo induction hardening to a depth-rated hardness of 52–60 HRC to eliminate wear.
2. V-Openings and Versatility
Due to its substantial 95×95 mm profile, TFI designs this square matrix to house a highly versatile range of V-openings across its four sides:
- Small to Medium Openings (e.g., V16, V25, V40): Ideal for bending thin to medium gauge sheets ranging from 1.5 mm to 4.0 mm.
- Large Openings (e.g., V63 or V80): Positioned on the broader sides, these large channels allow the bending of heavy plates (5 mm to 8 mm and above) at standard 85° or 88° angles.
3. Key Advantages for Promecam Press Brakes
- Reduced Setup Times: Instead of swapping out the entire die to change sheet thickness, the operator simply rotates the matrix 90 or 180 degrees to the required V-opening.
- High Tonnage Resistance: The heavy-duty 95×95 mm body ensures the tool resists deformation, cracking, or deflection under severe bending pressures.
- Production Flexibility: It enables a single workstation to process a wide spectrum of materials—including mild steel, stainless steel, and aluminum—of varying thicknesses.
- Extended Tool Life: TFI’s use of premium steel combined with precise induction hardening ensures the matrix delivers reliable accuracy over years of high-volume production.
The Bending Matrix 95×95 mm for the Promecam 3150, available through TFI Co, delivers a robust, versatile solution for European‑style press brakes, allowing operators to bend sheet metal of varying thicknesses without frequent tool changes. By presenting detailed technical specifications, key advantages, and maintenance guidance, this page helps industrial buyers and procurement teams assess whether the matrix meets their production needs and decide on next steps. As part of web.tfico.com’s broad industrial gateway, the product page links to core categories such as shear blades, press brake tools, circular blades, food‑industry knives, and carton slitter knives, while routing users to related sites for sharpening, bandsaw blades, anti‑mark film, and metal‑working machines—supporting product discovery, export‑oriented enquiries, and direct customer contact. Steel Blades • Machine Knives • Press Brake Tools • Cutting Saws • Re Sharpening.
Need to Know
- 4‑Way Multi‑V Bending Matrix serves as press‑brake tooling for European‑style systems.
- TFI Co. routes enquiries and generates contact requests through its industrial blade categories.
- Industrial buyers, fabrication factories, and maintenance teams benefit from robust, versatile tooling options.
- Use this matrix with Promecam 3150 press brakes for efficient, multi‑thickness sheet processing.
- Cross-section 95x95mm, length 3150mm, delivers versatile sheet metal processing for operators.
Standards & Compliance
TFI Co. operates with a commitment to industrial standards. Specific product compliance details and manufacturing certifications are available directly upon request for our press brake tools and other solutions.
TFI Co. is a trusted partner for industrial buyers, fabrication factories, and procurement professionals worldwide. Our precision-engineered solutions, including advanced press brake tools like this bending matrix, are relied upon for critical manufacturing processes. We stand as a leader in Steel Blades, Machine Knives, Press Brake Tools, Cutting Saws, and Re Sharpening.
Warranty: Every TFI Co. industrial blade and tooling solution is backed by our commitment to performance, supported by comprehensive after-sales service and expert re-sharpening to extend product lifespan and optimize operations.
Product Data Sheet
| Product Type | 4-Way Multi-V Bending Matrix |
|---|---|
| Purpose | Sheet Metal Bending Tool |
| Feature | Multiple V-openings on a single block |
| Cross-Section Dimensions | 95 x 95 mm |
| Total Length | 3150 mm |
| Compatible Press Brake | Promecam 3150 |
| Compatible Systems | European-style Amada-Promecam |
| Sheet Metal Thickness Flexibility | Various sheet metal thicknesses |
| Manufacturer | TFI Co. |
Proven Applications
- Sheet Metal Fabrication: Fabrication factories utilize TFI Co.’s 4-Way Multi-V Bending Matrix to process diverse sheet metal thicknesses efficiently on Promecam press brakes without frequent tool changes.
- Industrial Procurement: Procurement professionals integrate TFI Co.’s robust bending matrices into their supply chains, ensuring consistent quality and performance for metal forming operations.
- Production Optimization: Manufacturing facilities leverage TFI Co.’s Promecam-compatible bending tools to minimize machine downtime and enhance production flexibility across various bending applications.
- GCC Industrial Markets: Industrial operations in Saudi Arabia and the broader GCC region rely on TFI Co.’s specialized press brake tools for precise and durable sheet metal bending.
- Maintenance Teams: Maintenance teams appreciate the longevity and versatility of TFI Co.’s bending matrices, reducing the need for frequent tooling replacements and associated costs.
- Multi-V Tooling Applications: Operators in precision metalworking shops use TFI Co.’s multi-V bending matrices to achieve various bend angles and complex profiles with a single tool setup.
- European Press Brake Compatibility: Factories with European-style press brakes (Amada-Promecam) choose TFI Co. for perfectly compatible bending matrices that ensure seamless integration and optimal performance.
Expert Answers
What is the Bending Matrix 95x95mm for Promecam 3150?
This is a 4-Way Multi-V Bending Matrix manufactured by TFI Co., designed for Promecam press brakes. It features a robust 95 x 95 mm cross-section and a total length of 3150 mm. This versatile tooling allows for efficient bending of various sheet metal thicknesses, minimizing the need for frequent tool changes during operations.
How does the 4-Way Multi-V Bending Matrix improve press brake operations?
The 4-Way Multi-V Bending Matrix significantly improves efficiency by providing multiple V-openings on a single tool block. This design enables operators to process a wide range of sheet metal thicknesses without constant tool changes, streamlining production and reducing downtime. Its versatility makes it a highly productive option for modern fabrication.
Can the TFI Co. Bending Matrix be used with other press brake systems?
Yes, the TFI Co. Bending Matrix 95x95mm for Promecam 3150 is compatible with Promecam press brakes and other European-style (Amada-Promecam) systems. This broad compatibility ensures that fabrication facilities with various machine types can integrate this robust and versatile tooling solution into their operations for consistent performance.
Does the 95x95mm Bending Matrix offer robust performance?
Absolutely. The TFI Co. 95x95mm Bending Matrix is engineered as one of the most robust and versatile tooling options available. Its substantial cross-section and construction are designed to withstand demanding industrial applications, providing consistent, high-quality bends over extended periods. It ensures durability and reliability in challenging fabrication environments.
Which dimensions define the TFI Co. Bending Matrix described?
The TFI Co. Bending Matrix for Promecam 3150 is defined by its cross-section of 95 x 95 mm. It also features an impressive total working length of 3150 mm. These dimensions highlight its capacity for handling substantial sheet metal pieces and its robust design suitable for heavy-duty press brake operations in industrial settings.
How can I inquire about or order the TFI Co. Bending Matrix 95x95mm for Promecam 3150?
To inquire about or order the TFI Co. Bending Matrix 95x95mm with a 3150mm length for your Promecam system, please contact our team directly. You can use our online inquiry form, initiate a chat for immediate assistance, or call us. We will assist you with technical details, pricing, and project-specific requirements.
Direct Technical Presentation
- We present specific TFI Co. press brake tooling, such as the 95x95mm Bending Matrix for Promecam 3150, to route your enquiries and generate direct contact requests.
- Listed specifications apply to the described configuration; actual performance may vary based on the specific sheet metal thickness and operational context.
